A wide range of technologies enables bending of structural steel, stainless steel or aluminum. Thanks to the fact that we have machines of three sizes, we can bend ideally depending on the size of the product and the type of material. For multiple bends, we can use an automatic bending center.
| Machine | Max. pressing force | Max. bending length |
|---|---|---|
| Trumpf TruBend 5170 | 1700 kN | 3050 mm |
| Trumpf TruBend 5130 | 1300 kN | 3050 mm |
| Trumpf TruBend 3100 | 1000 kN | 3050 mm |
| Trumpf TruBend 5085 | 850 kN | 2720 mm |
| Trumpf TrumaBend V50 | 500 kN | 1275 mm |
| Safan E-Brake 150-3100 | 1500 kN | 3050 mm |
| Safan E-Brake 50-2050 | 500 kN | 2050 mm |
| Safan E-Brake 25-1250 | 250 kN | 1250 mm |
| Safan E-Brake 35-1250 | 350 kN | 1275 mm |
| Bystronic Xpert 1500/3100 | 1500 kN | 3100 mm |
| Machine | Max. bending length | Max. bending height | Max. sheet thickness, structural steel | Max. sheet thickness, stainless steel | Max. sheet thickness, aluminium | Max. rotating diagonal |
|---|---|---|---|---|---|---|

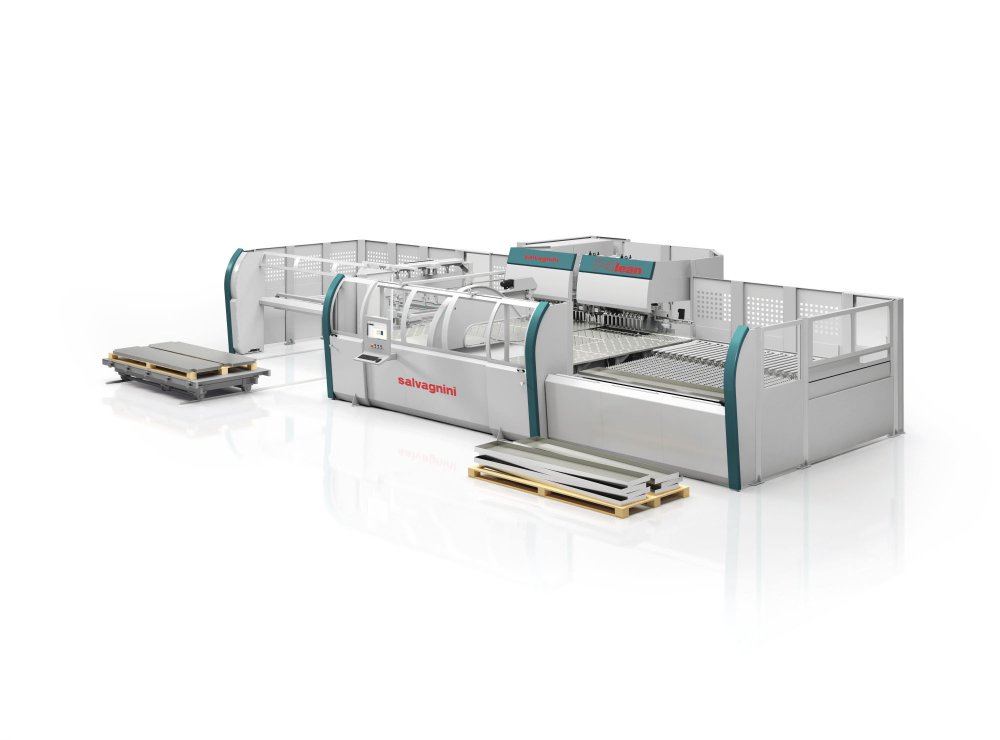

| Salvagnini P4 Lean-2520 | 2500 mm | 203 mm | 2,5 mm | 2 mm | 3 mm | 3200 mm |

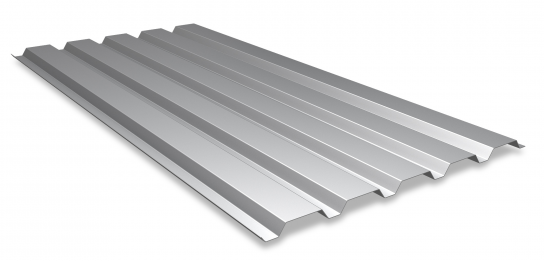

Trapezoidal sheet metalThe production of atypical trapezoidal sheets is enabled by a special pressing tool, which is fitted with the Safan E-Brake 150-3100 press brake, which is used exclusively for this production.

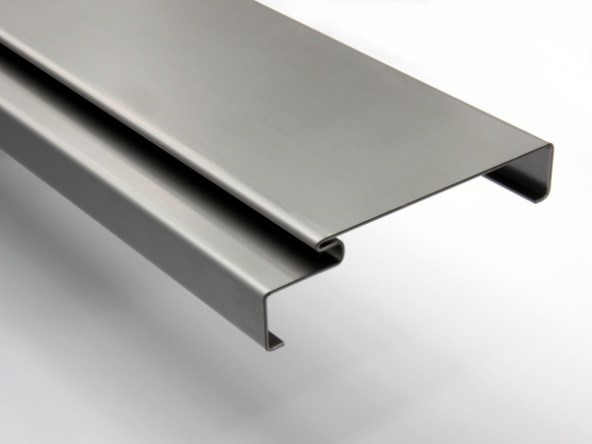

Door frame with groove for sealingWe own a special two-level pneumatic tool designed for the production of steel door frames with a groove for sealing. Thanks to this tool, we are able to produce a door frame without changing tools.

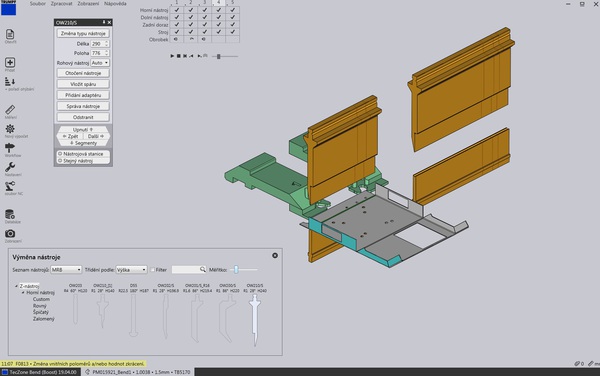

Thanks to the TruTops Boost software, we are able to verify the manufacturability of bent parts very quickly. Based on 2D and 3D data, the software automatically generates bending procedures. There are many supported file formats such as step; stp; igs; ipt; dwg; dxf etc.
